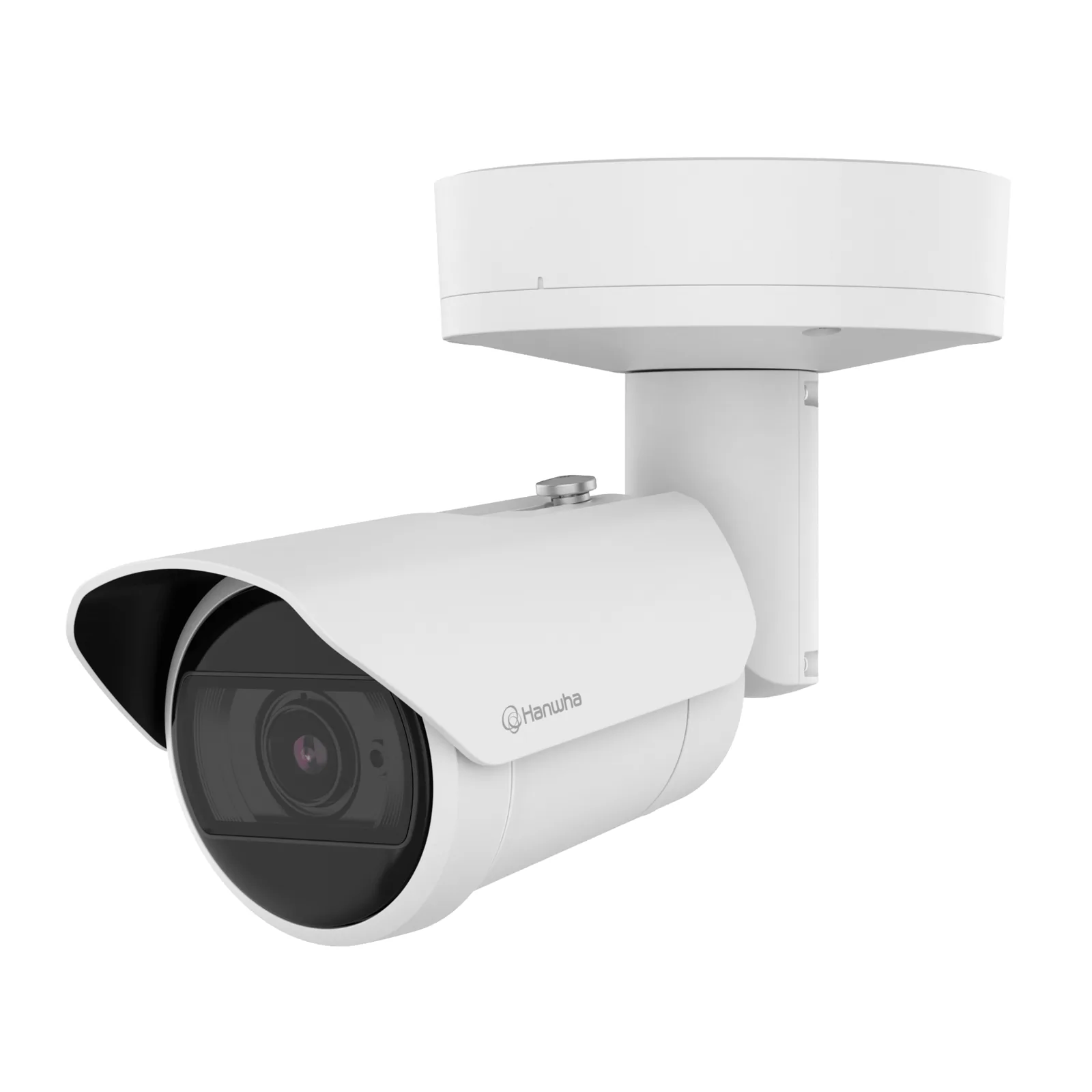

Cámara Bullet AI IR 2 Megapixel (1080p) / Lente 2.8-12 mm / IR 50 m (164 ft) / IP66-IP67-IK10 / Análisis IA / Wisenet 9 / Dual NPU / -40°C a +60°C / PoE

Name: Cámara Bullet AI IR 2 Megapixel (1080p) / Lente 2.8-12 mm / IR 50 m (164 ft) / IP66-IP67-IK10 / Análisis IA / Wisenet 9 / Dual NPU / -40°C a +60°C / PoE
Brand: Hanwha Techwin Wisenet
SKU: 252281

$18,052.51MXN

IVA incluido · precio de referencia, sujeto a existencia

Existencia por confirmar

La existencia de este producto aún no está confirmada. Consúltanos antes de comprar.

Preguntar disponibilidad por WhatsApp

Precio sujeto a cambio sin previo aviso. Última actualización: 29 de julio de 2026, 14:00 h · Tipo de cambio $17.59 MXN/USD.

Pago seguroTransferencia SPEI a cuenta Banregio a nombre de Mercax.com SA de CV.

Envío gratisA todo México en pedidos desde $1,000, entrega en 24–72 h hábiles.

Factura disponibleSolicítala con tu compra.

DevolucionesConsulta la política.

SPEITransferencia

Ficha técnica

No. de parte	XNO-A6084R
SKU Mercax	252281
Marca	Hanwha Techwin Wisenet
Categoría	Videovigilancia › Cámaras IP y NVRs › Bala
Peso	1.66 kg
Clave de producto SAT	46171610

Los datos técnicos completos están en la descripción.

Descripción

Hanwha Vision XNO-A6084R

2MP AI IR Bullet Camera

Professional bullet camera featuring dual NPU architecture for AI-based image enhancement and advanced analytics. Equipped with a 1/2.8" CMOS sensor delivering 1920x1080 resolution at up to 60fps (H.265/H.264), motorized 2.8-12mm lens with 4.3x optical zoom, and 150dB WDR. The Wisenet 9 SoC integrates 4GB RAM and 8GB eMMC flash, supporting edge storage up to 1TB microSD card. Comprehensive ONVIF conformance (Profile G, S, T, M), MQTT, and Hanwha Open Platform API enables deep integration into VMS and third-party systems.

Designed for extreme environments with IP66/IP67/IK10 and NEMA 4X rating, operational from -40°C to +60°C. AI analytics include object detection, virtual line/area, people/vehicle counting, heatmap, queue management, face mask detection, slip & fall, and business intelligence. Security features include secure boot, encrypted firmware, 802.1X authentication, and FIPS 140-3 level 3 secure element.

Key Features

Image Resolution: 2MP (1920x1080)

Focal Length: 2.8-12mm (4.3x optical)

IR Length: 50m (850nm)

Ingress Protection: IP66, IP67, IK10, NEMA 4X

Dual NPU: AI-based image enhancement & analytics

Wide Dynamic Range: 150dB

Min. Illumination: Color: 0.02 lux, B/W: 0.002 lux

SoC: Wisenet 9 with 4GB RAM / 8GB flash

Video & Imaging

Imaging Device: 1/2.8" CMOS

Max. Resolution: 1920x1080 (2MP)

Max. Framerate: 60fps @ H.265/H.264, 30fps @ MJPEG

Min. Illumination: Color: 0.02 lux (1/30sec, 30IRE); B/W: 0.002 lux

WDR: 150dB

Digital Noise Reduction: WiseNR II (AI engine), SSNR V

Digital Image Stabilization: Support

Defog: Support

Video Rotation: Flip, Mirror, Hallway view (90°/270°)

LDC: Support (Fill/Stretch mode)

Electronic Shutter: Min/Max/Anti-flicker, AI-based prefer shutter, 2 ~ 1/40,000 sec

Day & Night: Auto (ICR)

Lens & Optics

Focal Length: 2.8~12mm

Optical Zoom: 4.3x

Aperture (Wide/Tele): F1.4 / F3.6

Angular FOV: Horizontal: 120°~27°, Vertical: 63°~15°, Diagonal: 143°~32°

Min. Object Distance: 0.5m (1.64ft)

Focus Control: Simple focus, Manual

Lens Type: P-iris (IR corrected)

AI Analytics

Analytics Events: Object detection, Virtual line (crossing/direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (loitering/intrusion/enter/exit/appear/disappear), Defocus detection, Tampering, Audio detection, Shock detection

Business Intelligence: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting

Classified Object Types: Person, Face, Vehicle, License plate

Attributes: Person: Upper/lower clothes color, gender, bag; Vehicle: type (car/bus/truck/motorcycle/bicycle), color; Face: age, gender, face mask, glasses

Thumbnail: BestShot

Network & Protocols

Ethernet: Metal shielded RJ-45 (10/100BASE-T)

Video Compression: H.265/H.264 (Main/Baseline/High), MJPEG

Audio Compression: G.711, G.726, AAC-LC, OPUS

Smart Codec: WiseStream (AI engine)

Streaming: Unicast (up to 20 users), Multicast, up to 5 profiles, 3 virtual channels

Protocols: IPv4/IPv6, TCP/UDP, RTSP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP/SFTP, SNMPv1/v2c/v3, MQTT, SMTP, Syslog, 802.1X, and more.

API: ONVIF (Profile G, S, T, M), SUNAPI (HTTP API), Hanwha Open Platform

Direct Cloud Connection: Support

Security Features

OS/Firmware Protect: Encrypted firmware, Secure boot, Signed firmware

User Authentication: Digest authentication, Brute-force attack prevention

Network Authentication: IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)

Secure Communication: HTTPS, WSS, SRTP

Access Control: IP-based, MAC-based, Auto logout

Data Protect: Encryption credentials, Encrypt compress for live recording export

Secure Element: FIPS 140-3 level 3, CC EAL6+, Consumer IoT Security Standard (ETSI EN 303 645)

Mechanical & Electrical

Dimensions: ø93.4 x 276.6 mm (3.68 x 10.89")

Weight: 1,660 g (3.66 lb)

Material: Aluminum, PC, Hard-coated window

Color / RAL: White / RAL9003

Pan/Tilt/Rotate: Pan: 0°~350°, Tilt: 0°~90°, Rotate: 0°~350°

Input Voltage: PoE (IEEE802.3af, Class3)

Power Consumption: Max 10.2W, typical 5.0W

WisePower: Power monitoring, Eco mode

Environmental & Edge Storage

Operating Temp.: -40°C ~ +60°C (-40°F ~ +140°F), max +74°C (NEMA-TS 2)

Storage Temp.: -50°C ~ +60°C (-58°F ~ +140°F)

Humidity: 0~100% RH (condensing) operating; 0~90% RH (non-condensing) storage

Edge Storage: Micro SD/SDHC/SDXC slot, max 1TB

SoC / Memory: Wisenet 9 with Dual NPU, 4GB RAM, 8GB eMMC

Alarm I/O: 2 configurable ports, supports external I/O box

Certifications & Standards

EMC: FCC Class A, CE/UKCA EN55032 Class A, EN50130-4, VCCI Class A, RCM, KS C 9832

Safety: UL 62368-1, CSA C22.2, IEC 62471

Environmental: IP66, IP67, IK10, NEMA TS 2-2013, NEMA 250 type 4X, IEC 60068-2 (series)

Supply Chain Security: SBOM, Secure element certified

Audio & Alarm

Audio In/Out: Selectable (mic in/line in), Line out

Alarm Triggers: Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption

Alarm Events: File upload (email/FTP/SFTP), video clip upload (FTP/SFTP), email notification, SD/NAS recording, Alarm output, PTZ preset, HTTP/HTTPS/TCP message, Audio clip playback, MQTT publication

Video Out: USB Type C (preview/installation only, requires WiFi dongle)
