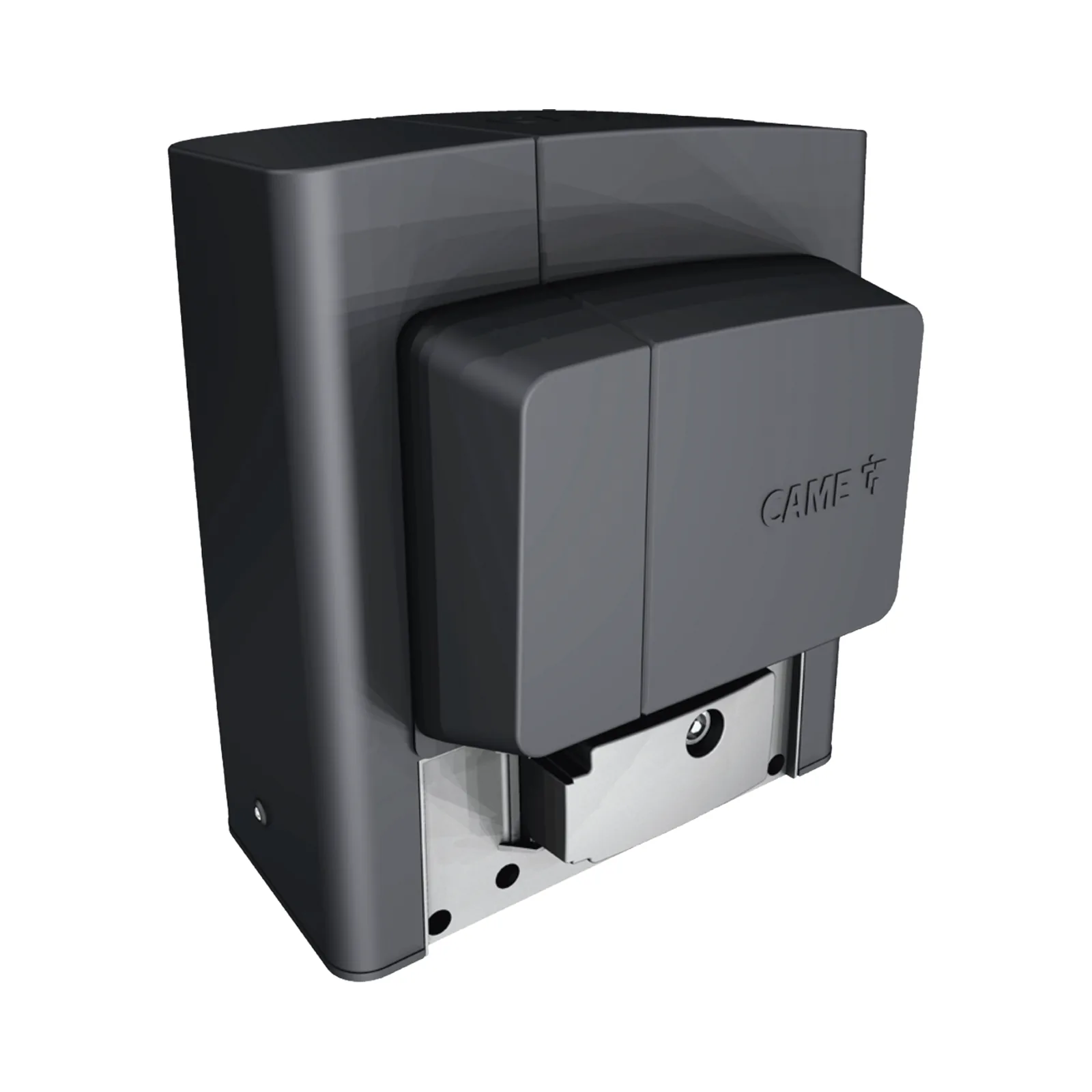

Operador Para Puertas Corredizas de 1800 kg y Hasta 20 Metros de Largo / Voltaje de Operación 230 VAC / Para Aplicaciones de Uso Residencial
El sistema reporta pocas piezas. Antes de comprar, confirmamos físicamente la existencia con nuestro almacén.
Ficha técnica
| No. de parte | 001-U2813 |
|---|---|
| SKU Mercax | 164533 |
| Marca | CAME |
| Categoría | Control de Acceso › Acceso vehicular › Puertas Abatibles y Corredizas |
| Peso | 24 kg |
| Clave de producto SAT | 46171619 |
Los datos técnicos completos están en la descripción.
Descripción
Aplicaciones comunes

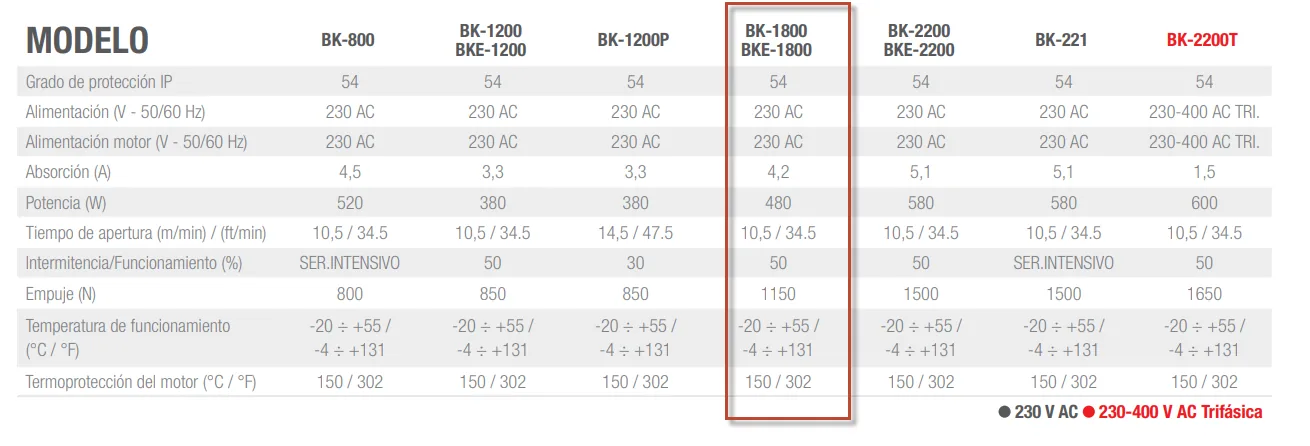

Especificaciones técnicas
Características principales
- Voltaje de operación: 220V
- Garantía: 1 año
Componentes del sistema
OPERATOR ANCHORING PLATE - BK
BK BKS M=4 Z=18 PINION
BK BKS LOW-SPEED SHAFT
PINION ELASTIC PIN - BK
BK INTERNAL RELEASE KEY
BX BK LOCK CYLINDER
MICROSWITCHES WITHOUT LEVER 10pcs
ROT. LONG LEVER MICROSWITCHES 10pcs
BK 230V TRANSFORMER WITH BRACKETS
CONDENSER µF 31 WITH CABLES AND STUD
BY BK ENDLESS SCREW
BX BK BXV PAIR OF LIMIT SWITCH TABS
TRILOBE RELEASE KEY 10pcs

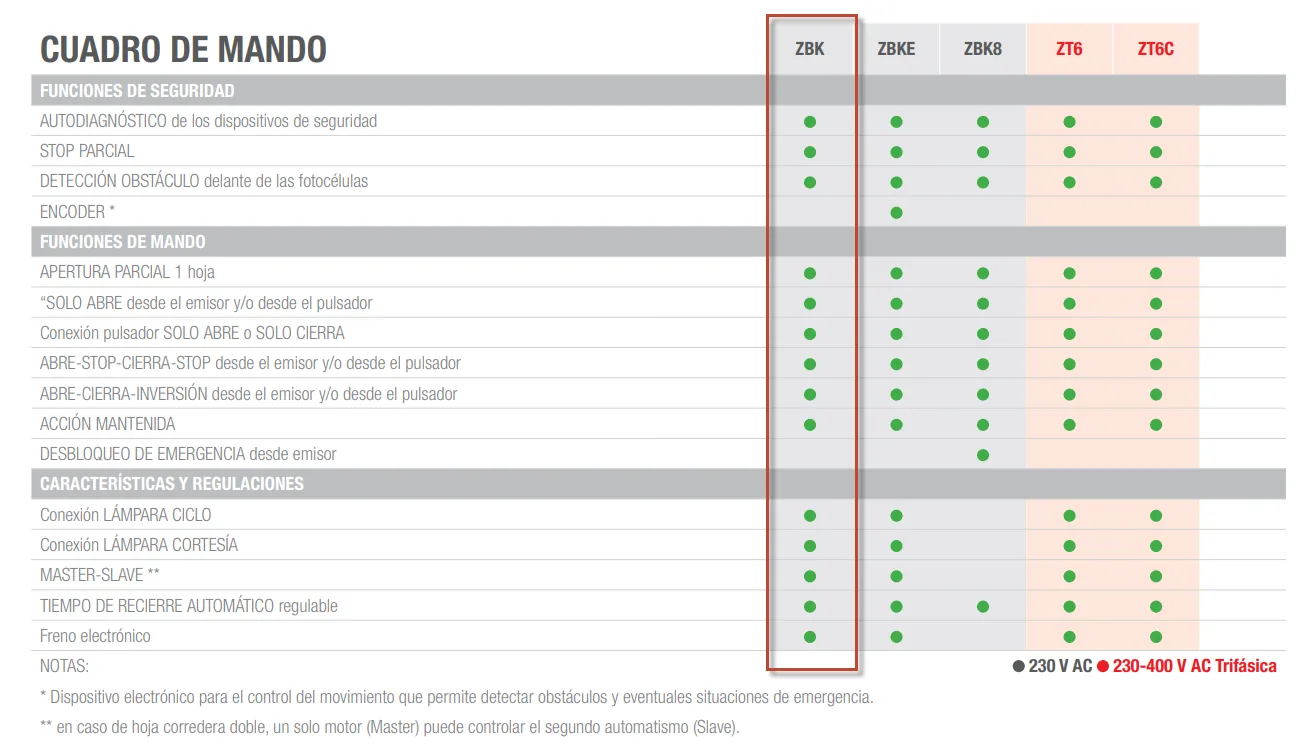

ZBKN CONTROL BOARD
BK DARK GREY PLASTIC ASSEMBLY RAL 7024
BK DARK GREY LIMIT-SWITCH ASSEMBLY RAL 7024
BKS HALF-CASE ASSEMBLY
BKS RELEASE ACCESS HATCH
BKS CIRCUIT BOARD RACK
BK1800 BKS18 MOTOR PACK
BK GASKET 50pcs
